AIP Secondary Air Injection System bypass Kit Toyota Tundra 4runner 4.7 5.7 2005-2011 plug and play
The
AIP BYPASS CUBE is
compatible with most 2005 – 2011 models with the 4.7 and 5.7 V8 engines. This is a basic bypass kit
that enables you to clear the Check Engine Light and Limp Mode
related to mechanical SAIS faults. You can choose the bypass module alone or the Bypass kit with the Block

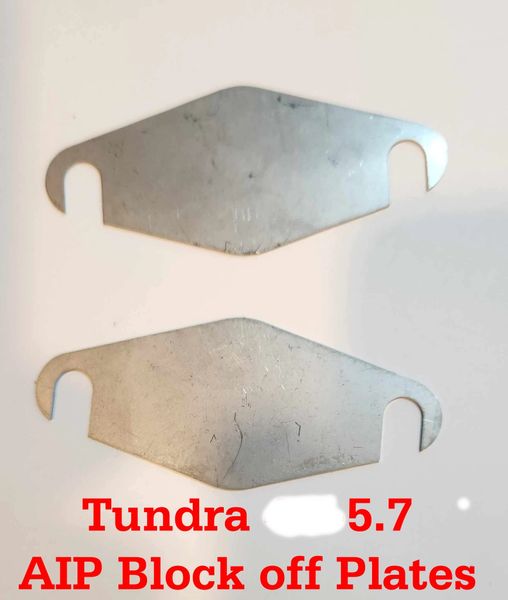

off Plates that fit your engine. The block off plates are engine specific. Similar to Hewitt tech and Rutech
BLOCK
OFF PLATES? – [print 104%]
It
is important to understand that installing AIP CUBE bypass will
prevent your Air Pumps and Air Switching Valves from operating.
However, it will not close the Air Switching Valves that are stuck
open. That said, we highly recommend using Block Off Plates. Please
go to the video link and watch how to install the plates. The front
wheels must be removed and the AIP exhaust connection is near the
firewall on both sides of the engine.
TUNDRA'S
WITH THE AIP REFLASH?
This
kit will not work on Tundras [2008-2011] who had their system
“Reflashed” in 2014-2015.
The reason it wont work if you have had the reflash is because it
causes the aip system to run after you shut the ignition off briefly
to purge any moisture out of the system (which is what is supposed to
be causing all the failures). You can go to the Toyota website and
punch in your VIN# to see if your truck was “Reflashed”. The
Plates can still be used to protect your engine from stuck valves.
The
following are Mechanical Trouble codes the Cube Bypass Kit typically
addresses*:
P1441
– Switching Valve No.2 Stuck Open Bank 1
P1442 – Switching
Valve No.2 Stuck Close Bank 1
P1444 – Switching Valve No.2 Stuck
Open Bank 2
P1445 – Switching Valve No.2 Stuck Close Bank
2
P2440 – Switching Valve Stuck Open Bank 1
P2441 –
Switching Valve Stuck Closed Bank 1
P2442 – Switching Valve
Stuck Open Bank 2
P2443 – Switching Valve Stuck Closed Bank
2
P2445 – Pump Stuck OFF Bank 1**
P2447 – Pump Stuck Off
Bank 2
The following are Trouble codes NOT addressed by the AIP CUBE Bypass.
Electrical Codes
P0412
– SAIS Switching Valve ‘A’ Circuit Malfunction Bank 1
P0415
– SAIS Switching Valve ‘B’ Circuit Malfunction Bank 2
P0418
– SAIS Circuit/Relay ‘A’ Circuit Malfunction Bank 1
P0419 –
SAIS Circuit/Relay ‘B’ Circuit Malfunction Bank 2
Electrical SAIS error codes are usually caused by an open or short circuit in one of the Air Switching Valves or Air Pumps. Each code would require a separate add on.
Pressure Sensor Codes
P2431
– Air Flow / Pressure Sensor Circuit Range / Performance
Bank1
P2432 – Air Flow / Pressure Sensor Circuit Low Bank
1
P2433 – Air Flow / Pressure Sensor Circuit High Bank 1
P2436
– Air Flow / Pressure Sensor Circuit Range / Performance Bank
2
P2437 – Air Flow / Pressure Sensor Circuit Low Bank 2
P2438
– Air Flow / Pressure Sensor Circuit High Bank 2
P106B –
Pressure Sensor Correlation / Evap. Pressure Sensor
These codes typically indicate a damaged Pressure Sensor which is usually caused by an Air Switching Valve being stuck open for an extended period of time. Functioning Pressure Sensors are needed this bypass kit.
MORE ABOUT THE AIP CUBE BYPASS KIT

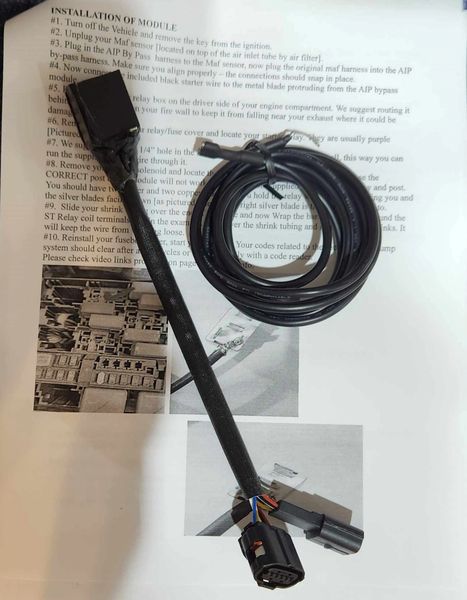

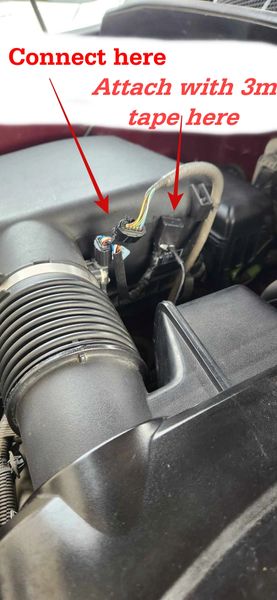

The bypass module is activated when the starter is engaged. The wire must be installed to the starter relay wire and when connected, ensures that the module actively prevents the SAIS from running on EVERY start. With the starter relay wire connected you can turn the ignition to “ON” for any period of time and the module will be active as soon as you crank the engine.
NOTE:
*The vehicles fuses, Pressure Senor(s), factory wiring harness and Engine Control Module (ECM) must be in good working condition for bypass kit to operate properly.
****There is a known “Cold Weather Glitch” on some older 4.7L engines. If the vehicle is tripping a P2445 and it is caused by this glitch; the AIP CUBE Bypass Kit alone will not resolve the issues, because it is a problem with the ECU. To stop throwing this code you will have to install the aip bypass, and then when you start your vehicle in cold weather you must let it run until the heat hand begins to move, then turn it off and restart the vehicle**
DISCLAIMER:
It is illegal to remove, dismantle or otherwise cause to be inoperative any pollution control device required by federal, state, or local emissions law. Our bypass kits are sold for off-road, competition or other emissions exempt vehicles only. No other applications are intended or implied. By installing or using this SAIS Bypass Kit the vehicle owner and installer acknowledge and assumes ALL risks associated with its use.
Modular
Install:
How to install
the Hewitt Technologies SAIS Gen. 1 bypass kit in a 2006 Toyota
Tundra
by Chris
Miller
https://www.youtube.com/watch?v=rk2XmIZAR2k
Block
off Plate install video:
Toyota/Lexus
5.7L SAIS Block Off Plate Installation - All Hewitt Tech Bypass Kits
